Subframe for seat, electrical adjustment. 2023 Volvo S60

This Fits Your 2023 Volvo S60

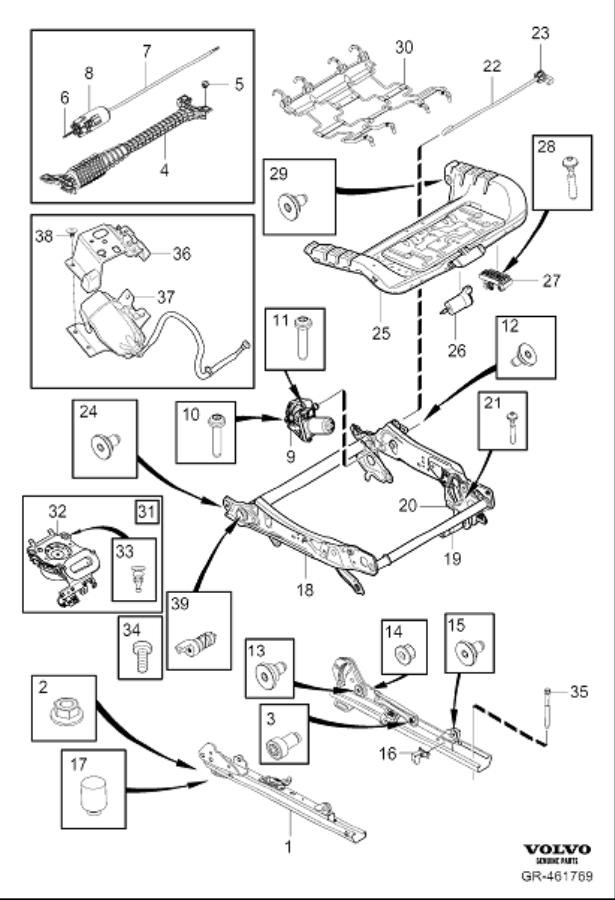

Subframe for seat, electrical adjustment

#

Product Name

Price

Part Number

Qty.

1

Seat Track

subframe for seat, electrical adjustment. R.H.
Kit with left and right-hand slide rail.

(Current price) $ 464.56

32206975

Add To My Cart
2

Flange nut

subframe for seat, electrical adjustment. R.H.
M8x8.

(Current price) $ 15.56

30622683

Add To My Cart
3

Screw

subframe for seat, electrical adjustment. R.H.
M10x17.5.

(Current price) $ 14.40

30622679

Add To My Cart
4

Power Seat Motor Drive Shaft (Outer)

subframe for seat, electrical adjustment. R.H.

(Current price) $ 67.79

31498208

Add To My Cart
5

Clip

subframe for seat, electrical adjustment. R.H.

(Current price) $ 8.05

31446433

Add To My Cart
6

Power Seat Motor Drive Shaft

subframe for seat, electrical adjustment. R.H.
short.

(Current price) $ 82.63

31435219

Add To My Cart
7

Power Seat Motor Drive Shaft

subframe for seat, electrical adjustment. R.H.
long. CH -180897.

(Current price) $ 38.13

31435220

Add To My Cart
7

Shaft

subframe for seat, electrical adjustment. R.H.
long.

(Current price) $ 38.13

31498964

Add To My Cart
8

Seat Motor

subframe for seat, electrical adjustment. R.H.
longitudinal adjustment. horizontal adjustment.

(Current price) $ 514.21

31498963

Add To My Cart
9

Seat Motor

subframe for seat, electrical adjustment. R.H.
height adjustment.

(Current price) $ 466.06

32206030

Add To My Cart
10

Six point socket screw

subframe for seat, electrical adjustment. R.H.
Left-hand threaded. M5x22.4.

(Current price) $ 32.94

30622680

Add To My Cart
11

Six point socket screw

subframe for seat, electrical adjustment. R.H.
Right-hand threaded. M5x25.4.

(Current price) $ 32.94

30622681

Add To My Cart
12

Spindle

subframe for seat, electrical adjustment. R.H.
CH 1620-. M8x11.

(Current price) $ 8.05

30622988

Add To My Cart
13

Pin

subframe for seat, electrical adjustment. R.H.
M10x20.7+7.2.

(Current price) $ 14.40

30622704

Add To My Cart
14

Flange nut

subframe for seat, electrical adjustment. R.H.
M10x10.

(Current price) $ 11.38

30622682

Add To My Cart
15

Spindle

subframe for seat, electrical adjustment. R.H.
M8x13.5+2.5.

(Current price) $ 14.40

30622703

Add To My Cart
16

Sensor

subframe for seat, electrical adjustment. R.H.
(CA), (US).

(Current price) $ 116.51

32206974

Add To My Cart
17

Stop lug

subframe for seat, electrical adjustment. R.H.
Variant code: 3O02. Variant code: 3O01 or 3P01.

(Current price) $ 38.13

31377491

Add To My Cart
18

Seat Frame (Right, Rear, Lower)

subframe for seat, electrical adjustment. R.H.

(Current price) $ 910.96

32341693

Add To My Cart
19

Motor

subframe for seat, electrical adjustment. R.H.

(Current price) $ 466.06

31435221

Add To My Cart
19

Motor. Seat Frame, Excellence. Subframe For Seat, Electrical Adjustment. CH 1. CH 899000 999999. (Left, Right, Rear, Lower)

subframe for seat, electrical adjustment. R.H.

(Current price) $ 466.06

31446435

Add To My Cart
20

Spindle

subframe for seat, electrical adjustment. R.H.
M6x12.95.

(Current price) $ 11.01

31446586

Add To My Cart
21

Flange screw

subframe for seat, electrical adjustment. R.H.
PF5x21.5.

(Current price) $ 8.58

30622716

Add To My Cart
22

Spring

subframe for seat, electrical adjustment. R.H.

(Current price) $ 18.23

31446452

Add To My Cart
23

Bushing

subframe for seat, electrical adjustment. R.H.

(Current price) $ 5.04

31446453

Add To My Cart
24

Pin

subframe for seat, electrical adjustment. R.H.
M10x18.75.

(Current price) $ 14.40

30622539

Add To My Cart
25

Seat Frame Mounting Base

subframe for seat, electrical adjustment. R.H.
Variant code: NU01 or PU01. Without cushion extension. Variant code: NW01 or PU01.

(Current price) $ 67.86

31446437

Add To My Cart
25

Seat Frame Mounting Base

subframe for seat, electrical adjustment. R.H.
Variant code: NU02 or PU02. With cushion extension. Variant code: NW02 or PU02.

(Current price) $ 371.07

31446455

Add To My Cart
25

Seat pan

subframe for seat, electrical adjustment. R.H.
Variant code: (NU03 or NW03) or (PU02 and (NI01 or NJ01)).

(Current price) $ 371.07

31488234

Add To My Cart
27

Clamp

subframe for seat, electrical adjustment. R.H.
Left and right.

(Current price) $ 48.72

31446711

Add To My Cart
28

Flange screw

subframe for seat, electrical adjustment. R.H.
PF5x21.5.

(Current price) $ 8.58

30622716

Add To My Cart
29

Spindle

subframe for seat, electrical adjustment. R.H.
M8x12+3.45.

(Current price) $ 14.40

30622702

Add To My Cart
30

Seat Cushion Spring

subframe for seat, electrical adjustment. R.H.

(Current price) $ 121.47

31435226

Add To My Cart
31

Temperature Controlled Seat Blower Motor

subframe for seat, electrical adjustment. R.H.

(Current price) $ 292.16

31498088

Add To My Cart
32

Bracket

subframe for seat, electrical adjustment. R.H.

(Current price) $ 116.51

31413864

Add To My Cart
33

Bushing

subframe for seat, electrical adjustment. R.H.

(Current price) $ 5.45

31413862

Add To My Cart
34

Cargo Net Screw

subframe for seat, electrical adjustment. R.H.
For ventilation fan. PF5x12.

(Current price) $ 2.25

986060

Add To My Cart
34

Six point socket screw

subframe for seat, electrical adjustment. R.H.
For ventilation fan. PF5x16.

(Current price) $ 2.25

986062

Add To My Cart
35

Sems screw

subframe for seat, electrical adjustment. R.H.
M10x113.

(Current price) $ 4.90

30622602

Add To My Cart
35

Sems screw

subframe for seat, electrical adjustment. R.H.
M10x38. FC 25; CH -311428, FC 35; CH -308525, FC 70; CH -311428.

(Current price) $ 3.39

30622782

Add To My Cart
36

Bracket

subframe for seat, electrical adjustment. R.H.
massage. FC 25; CH -311428, FC 35; CH -308525, FC 70; CH -311428. pump.

(Current price) $ 133.46

31435135

Add To My Cart
37

Air pump

subframe for seat, electrical adjustment. R.H.
massage. FC 25; CH 311429-, FC 35; CH 308526-, FC 70; CH 311429-.

(Current price) $ 317.77

32403566

Add To My Cart
37

Air pump

subframe for seat, electrical adjustment. R.H.
massage. FC 25; CH -311428, FC 35; CH -308525, FC 70; CH -311428.

(Current price) $ 317.77

31435136

Add To My Cart
38

Clip

subframe for seat, electrical adjustment. R.H.
massage. FC 25; CH -311428, FC 35; CH -308525, FC 70; CH -311428. bracket.

(Current price) $ 8.05

31435137

Add To My Cart
39

Plug. Subframe For Seat, Electrical Adjustment. Supporting Frame For Seat, manually Adjustable. (Right)

subframe for seat, electrical adjustment. R.H.

(Current price) $ 201.03

31488240

Add To My Cart
